Can-Am X3

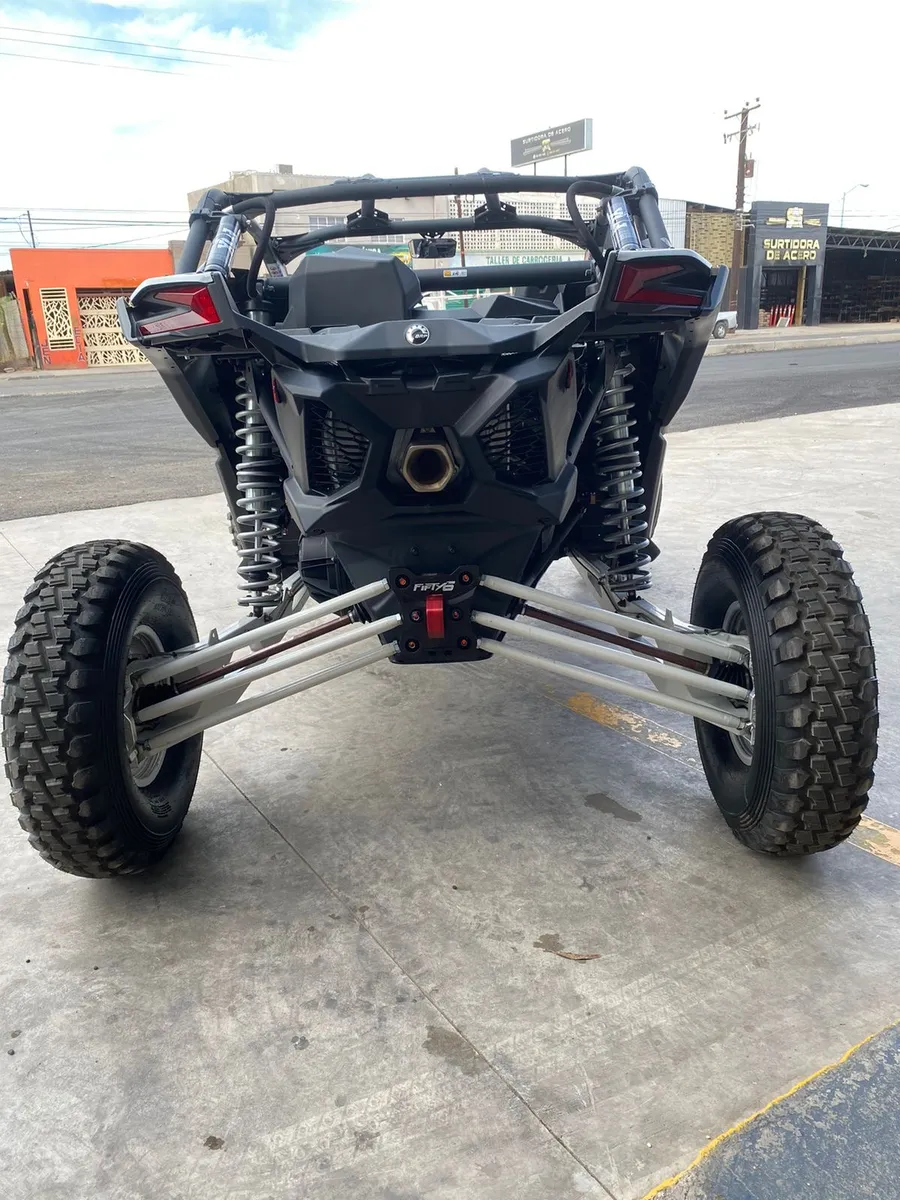

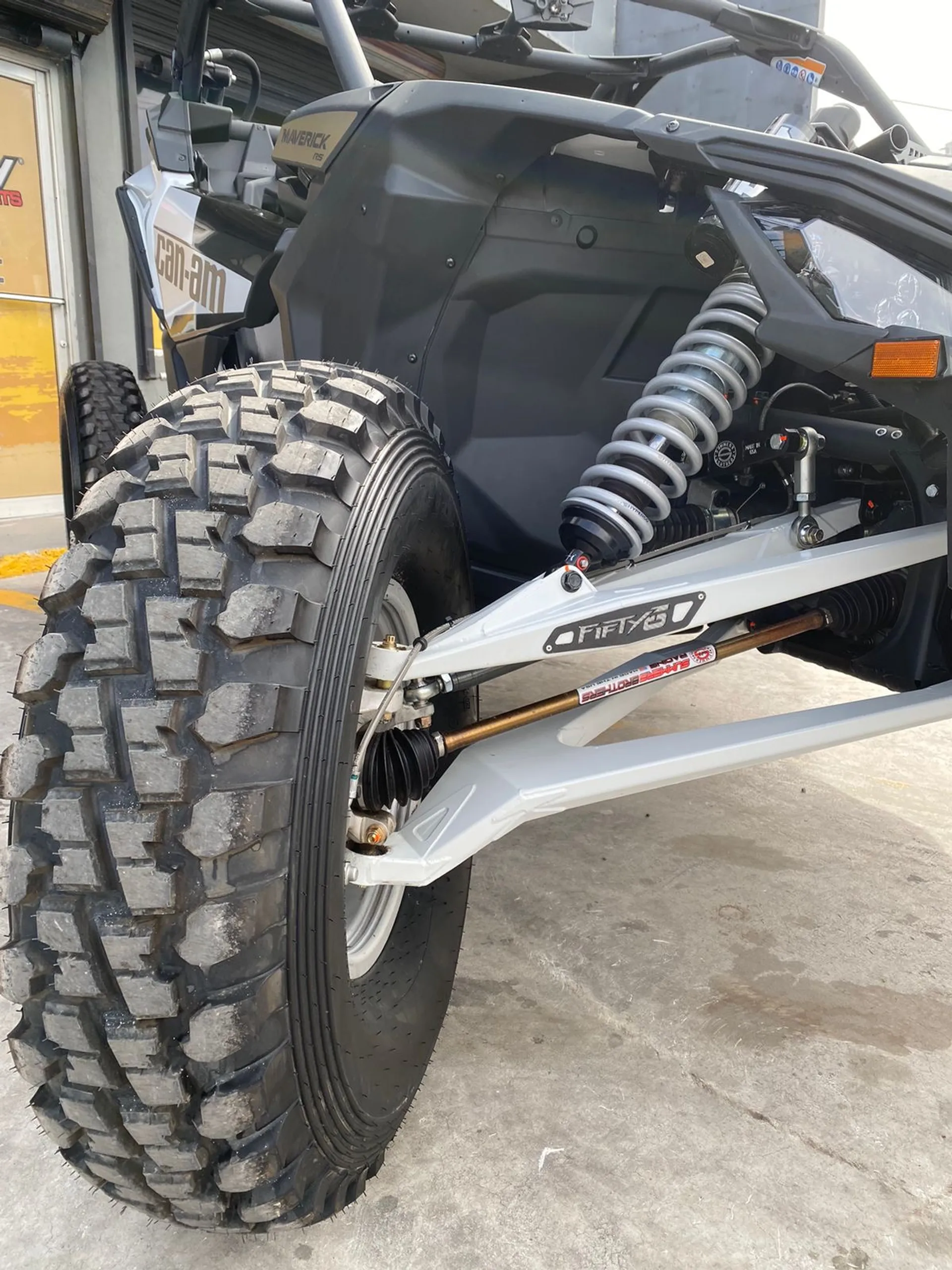

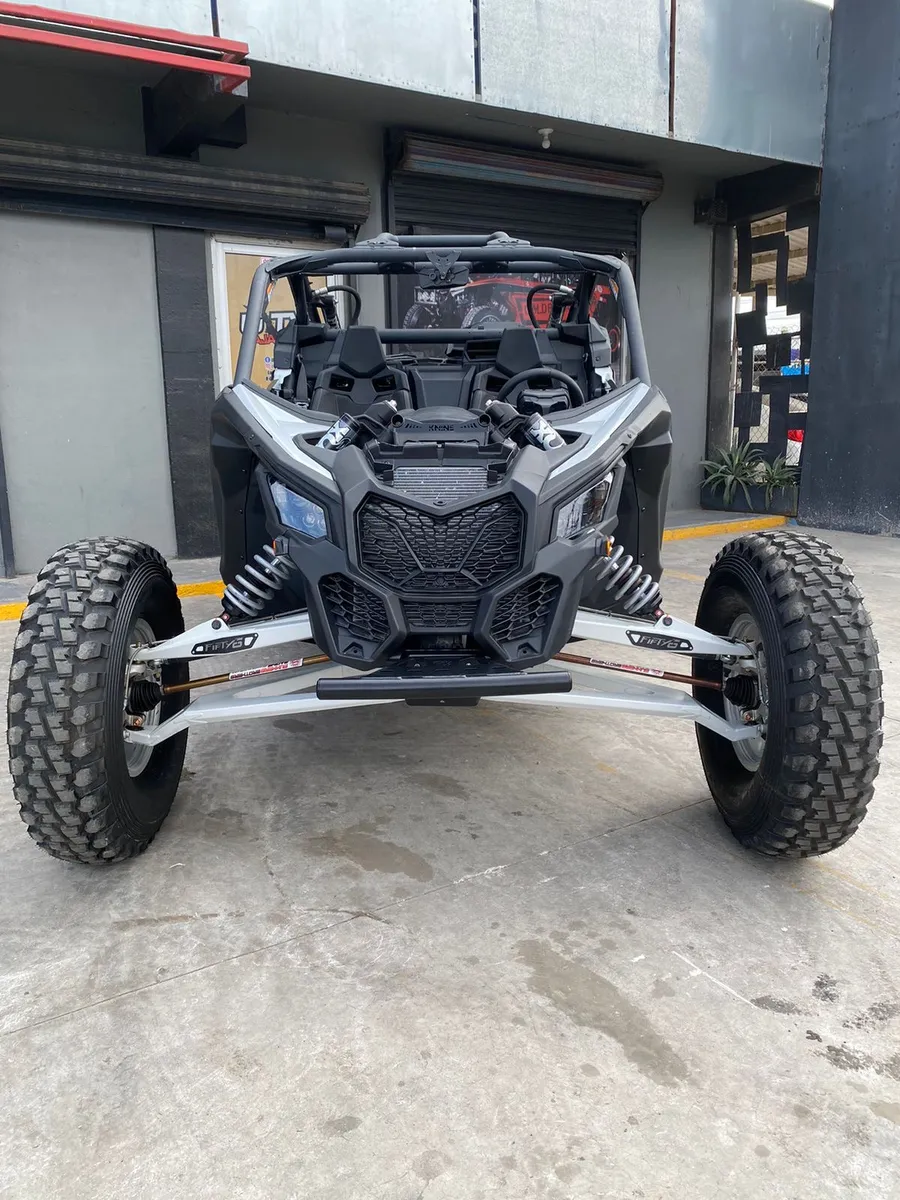

Can-Am Maverick X3 Can-Am X3 Long Travel +3"
1 / 6
Complete long travel race suspension kit. +3" per side on front, +2" per side on rear, bringing total width to 78".
Features
- 4130 Boxed A Arms
- +3" per side on front, +2" per side on rear
- TIG Welded
- Delrin Bushings
- 4130 inner sleeves
- FK 7/8" Uniballs all around
- 300M HT Spindle Pins
- Race Brake Line tabs
- Smart shock tabs available at additional cost
- Billet 56 Bracket for Radius Rod area for additional support
- +3" Tie Rods (2x Round 1¼" x .120 4130 paired with ⅝" FK Rod Ends and SS Spindle Spacers) — Must specify OEM Steering or Shock Therapy
- +2" Radius Rods (6x Round 1¼" x .120 4130 paired with L & R ⅝" FK Rod Ends and SS Spindle Spacers)
- Bolt On — re-uses factory bolts
Specifications
Material 4130 Chromoly
Welding TIG Welded
Front Width +3" per side
Rear Width +2" per side
Total Width 78"
Uniballs FK 7/8"
Spindle Pins 300M HT
Fitment Can-Am X3 (All Years)
Installation Bolt-On
Pricing
Complete Kit $9,375
