Can-Am Maverick X3

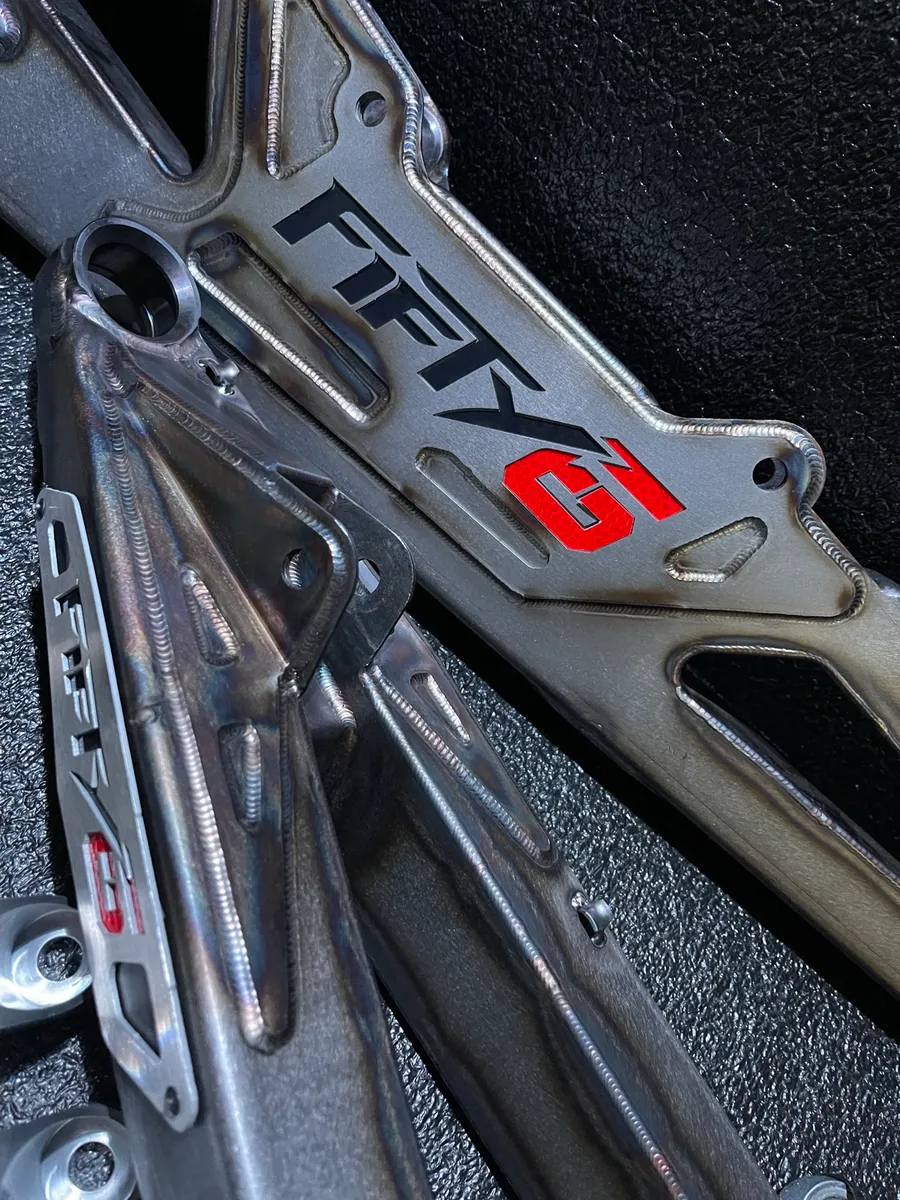

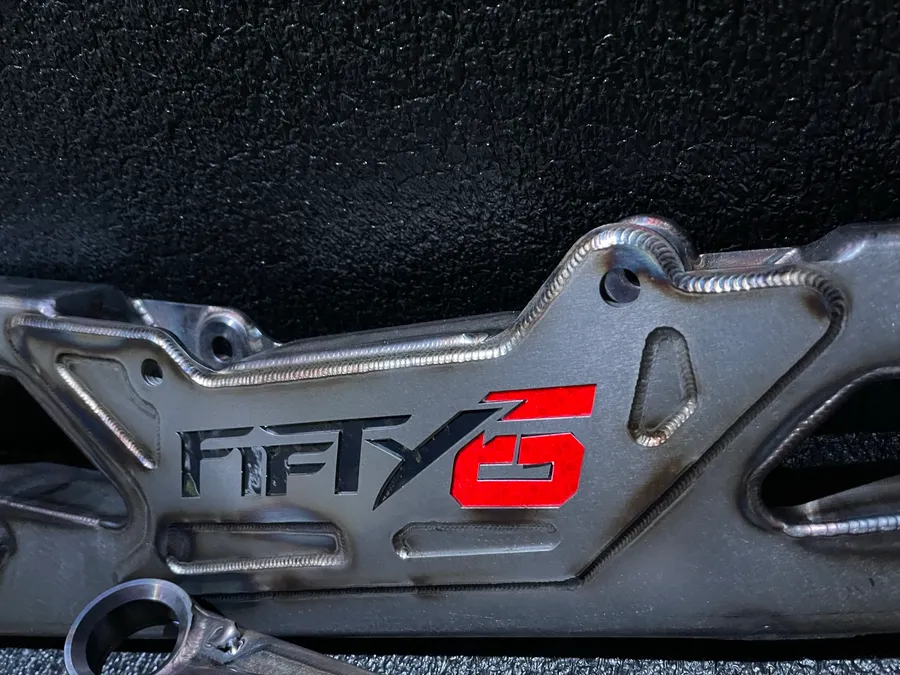

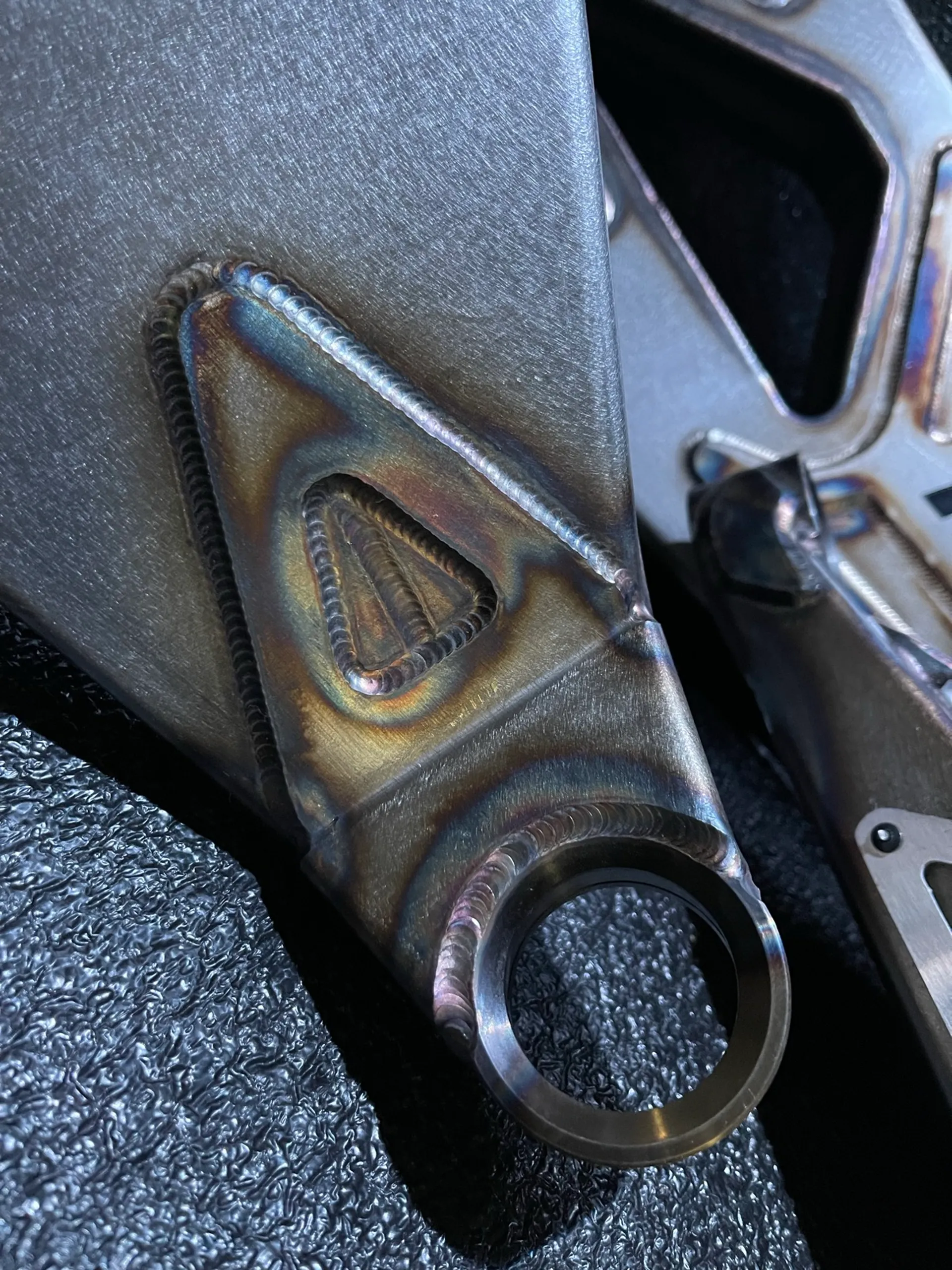

Stock width (72") race suspension kit. 4130 boxed A arms with race-grade components throughout.

Features

  • 4130 Boxed A Arms
  • TIG Welded
  • Delrin Bushings
  • 4130 inner sleeves
  • FK 7/8" Uniballs all around
  • 300M HT Spindle Pins
  • Race Brake Line tabs
  • Smart shock tabs available at additional cost
  • Trailing Arms include Billet 56 Bracket on Radius Rod area for additional support
  • Bolt On — re-uses factory bolts

Specifications

Material 4130 Chromoly
Welding TIG Welded
Width Stock 72"
Uniballs FK 7/8"
Spindle Pins 300M HT
Fitment Can-Am X3 (All Years)
Installation Bolt-On

Pricing

Front $2,775
Rear $2,775

More Can-Am X3 Products

Can-Am X3 +4" Trailing Arms
Can-Am X3

Can-Am X3 +4" Trailing Arms

Increase the wheelbase of your X3 by 4". Retains stock mounting points (SCORE / BITD Legal) and uses stock length axles.

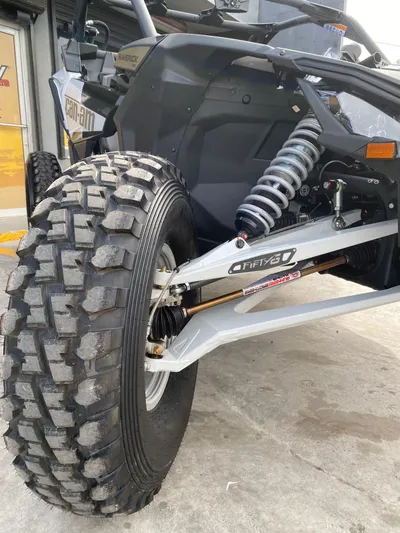

Can-Am X3 Long Travel +3"
